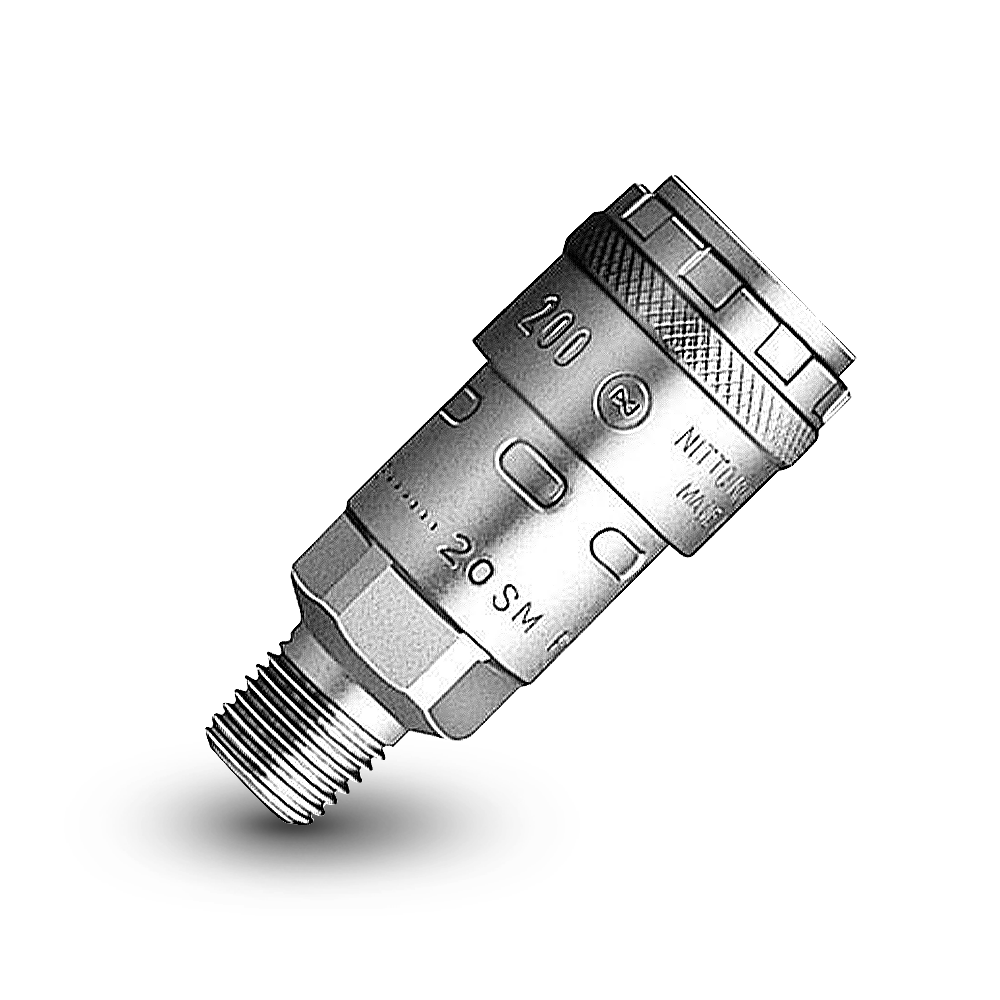

Nitto Khoki 200-20SM 1/4" Male HI CUPLA 200 Coupling Fitting

Nitto Kohki 200-20SM 1/4" Male HI CUPLA 200 Coupling offers universal coupling and provides excellent durability and application characteristics.

Suitable for:

• General Purpose workshop fittings
• Air Lines

Features:

• One touch connection, push-to-connect for more convienent swapping of tools and accessories
• SM suits female thread connections
• Large flow rate, valve structure allows for fluid flow
• Simple and secure connection made easy to connect and disconnect, particuarly in narrow and hard to reach places.
• New valve structure provides low pressure loss and increases flow rate (15% more air flow over standard series Hi-Cupla)
• Free Swiverling elimnates hose kinking
• Hardened parts providing extreme wear resistance and durability
• Interchanges with Nitto standard Hi-Cupla Applications

Specifications:

• Material: Steel (Chrome Plated)
• Size: 1/4 inch
• Thread Type: BSP
• Thread Size: 1/4 inch
• Working Temperature: -20 to 80 °C
• Working Pressure: 215 psi
