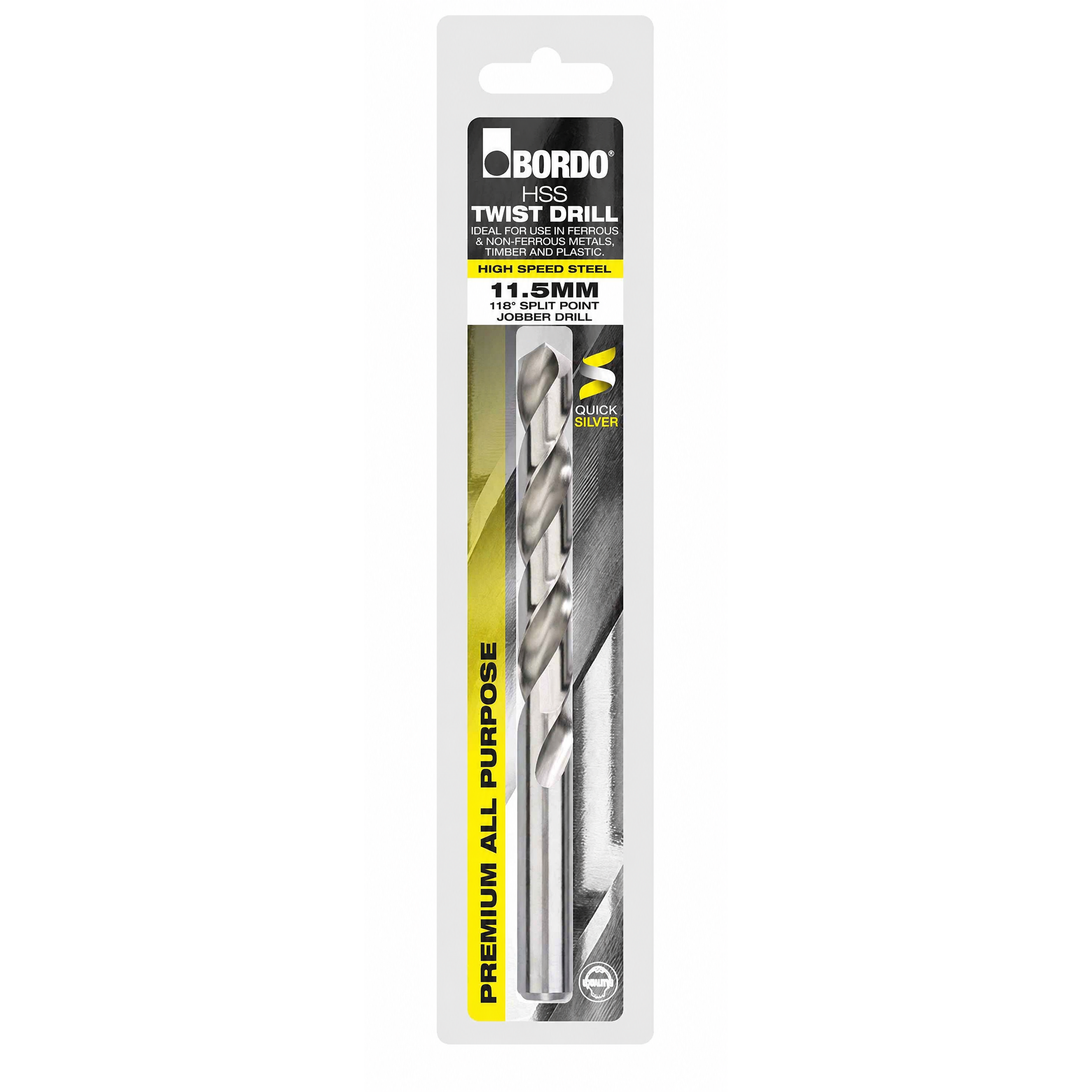

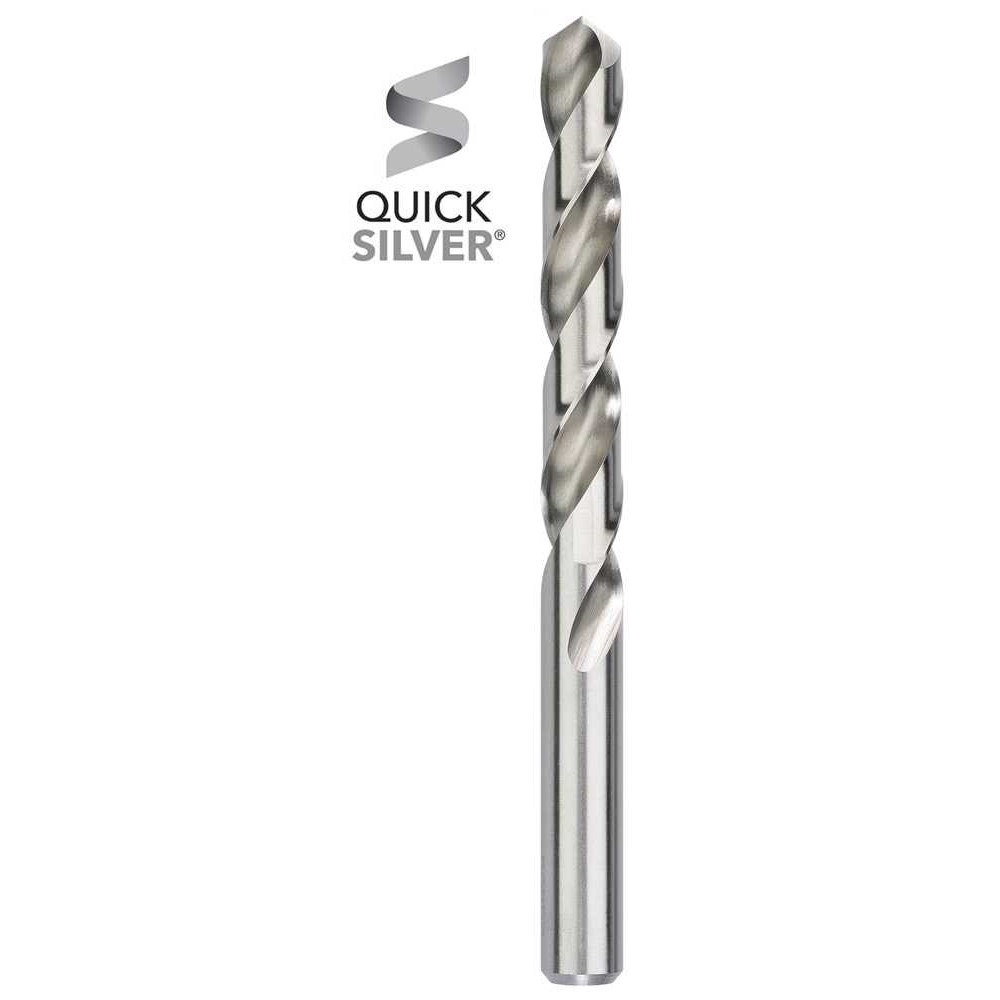

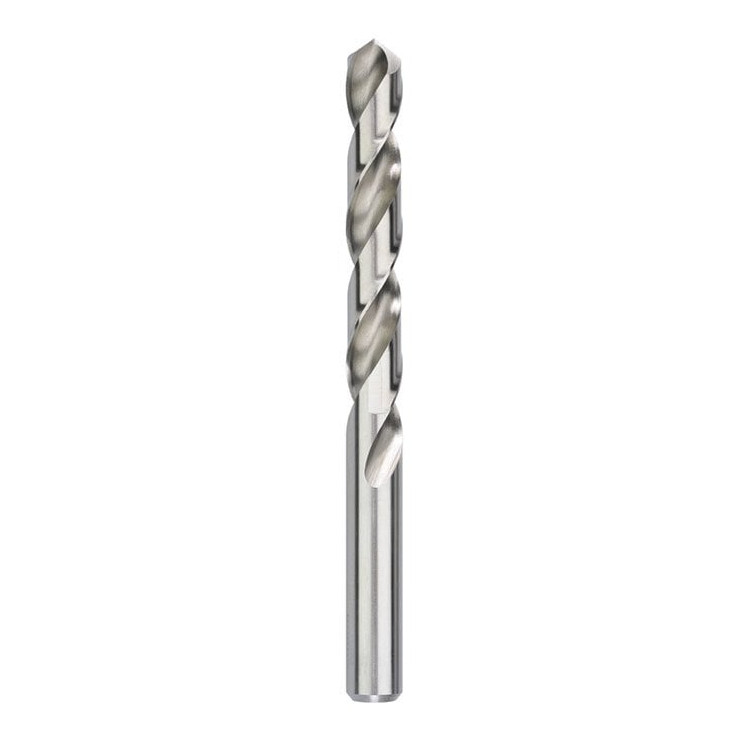

Description

• DIN338
• 118° Split Point (crankshaft point).
• Split point is self centering and reduces the need for end thrust. Friction at workpiece is reduced.
• 118° point angles are ideal for use in materials such as mild steel and cast iron.
• The 118° point creates easily controlled chips which are wide and thin.
• Bright Finish Twist Drills have no surface treatment and are supplied in the as-ground condition.
• These tools are suitable for general purpose use, particularly for non-ferrous applications.

Specifications

• Feed per revolution mm: 0.23
• Spindle Speed Aluminium/Brass RPM: 1689
• Spindle Speed Cast Iron RPM: 665
• Spindle Speed Free Cutting Steel RPM: 1191
• Spindle Speed Malleable Iron RPM: 748
• Spindle Speed Med. Carbon Steel RPM: 831
• Spindle Speed Stainless Steel RPM: 332
• Spindle Speed Tool Steel RPM: 499
• Spindle Speed Wood/Plastic RPM: 2520
• Diameter (mm): 11.5
• Flute Length (mm): 94
• Overall Length (mm): 142
