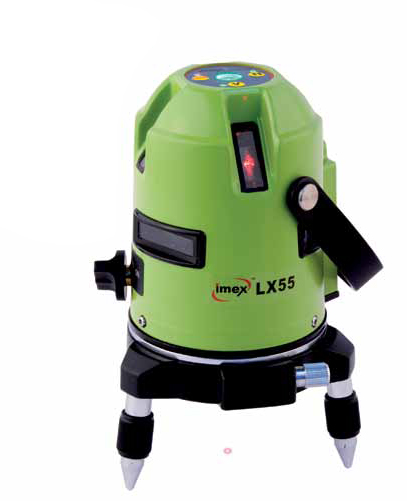

Imex LX55 Five Line Laser

For the ultimate levelling, the IMEX LX55, five line laser with four vertical lines and one horizontal offers the best in sharp, accurate interior line set-out. The unique full 360° horizontal line allows for the instrument to be set up in any part of a room. Combined with this is the option of a detector for outdoor mode up to 50 m, making this the most versatile all round laser available. With its rugged build and high accuracy this instrument is specially suited to commercial building projects.

Features:

• 1 Full 360° Horizontal line + 4 vertical lines at 90° and plumb spot
• Self levelling
• 50m outdoor range with detector

• 360° turntable with fine adjustment

Includes:

• Standard Laser Glasses
• Target Plate
• Hard Carry Case
• 2 year Imex™ warranty

Specifications:

• Light Source: Red laser diode, 635 nm
• Output: Laser Class II
• Accuracy: ±1.5 mm at 10 m
• Beams: 1 horizontal, 4 vertical at 90° and 1 plumb down point
• Damping Type: Magnetic self levelling
• Hours of Continuous Use: Approximately 8 hours all beams
• Working Distance: 10 m radius, (50 m outdoor optional)
• Dimensions: 200 (h) x 120 mm diameter
• Batteries: 3 x AA

Laser Only – Ex display stock
